openGrid

TinyRack

TinyRack is an open, modular mini server rack compatible with the openGrid ecosystem. The TinyRack’s device mounting platform is based on multiples of openGrid’s 28 mm grid size.

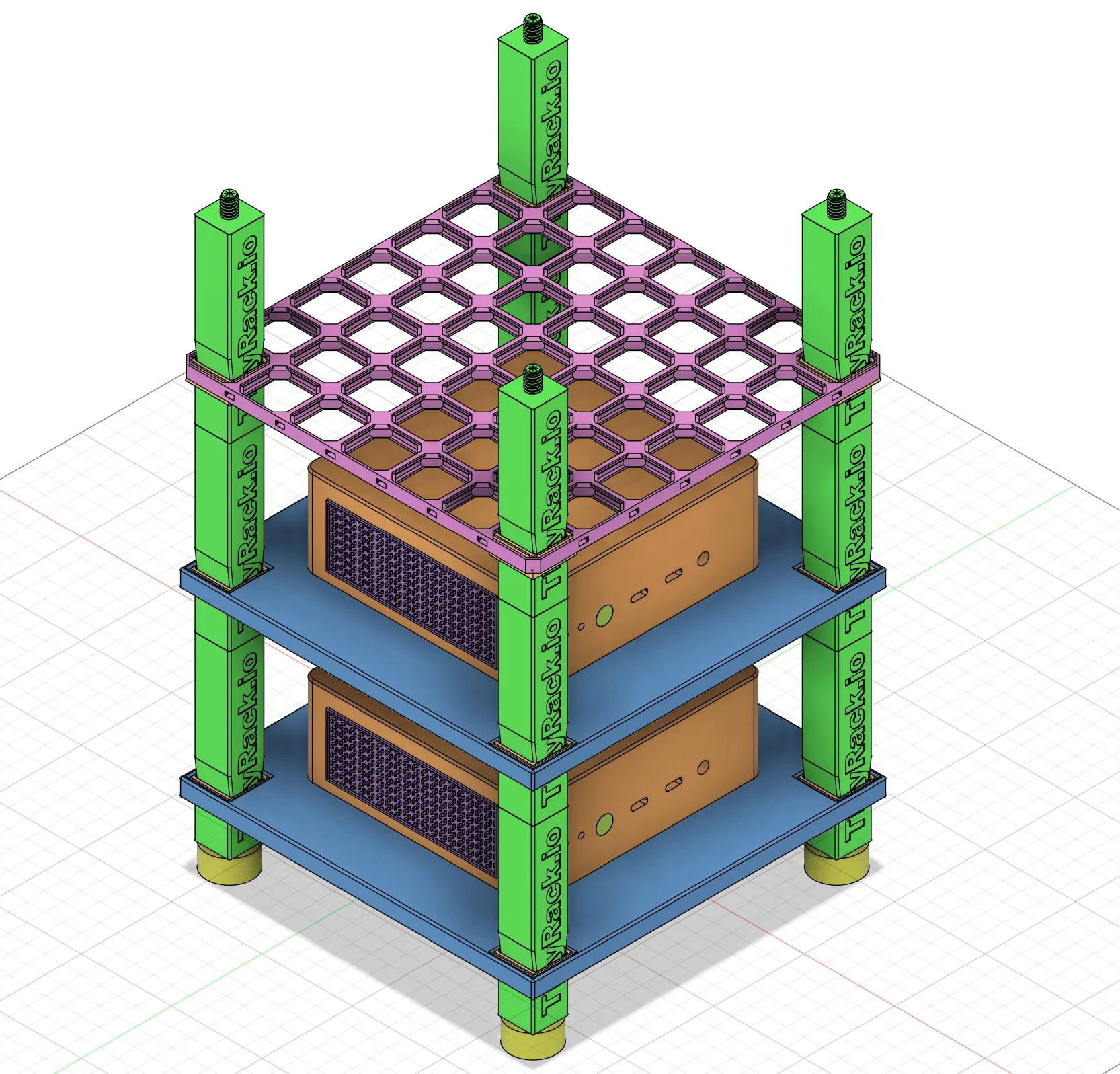

Assambly image of TinyRack with openGrid as one of the tier in the CAD model.

With the TinyRack-openGrid adapter, you can mount openGrid grids on top of the TinyRack’s notched posts. This allows the openGrid ecosystem to expand vertically.

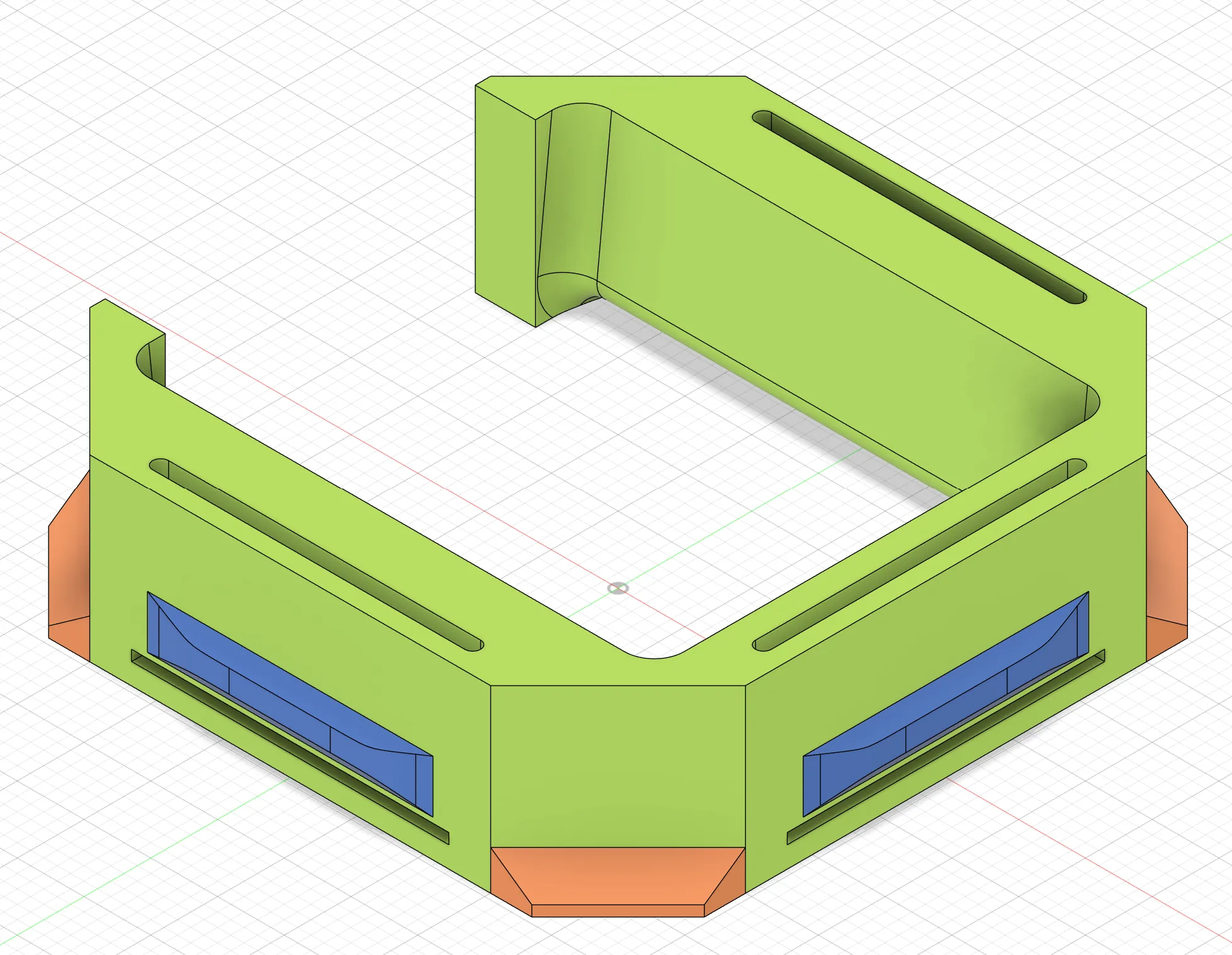

CAD model of the TinyRack-openGrid adapter.

The cable management modules from Underware 2.0 (designed for openGrid) can also be used to manage mini-server cables in TinyRack. The author is currently developing additional modules, such as Ethernet patch panels, to mount on openGrid.

Download the models

Section titled “Download the models”

All TinyRack models are licensed under CC-BY-SA. You can download them from the following platforms:

TinyRack (main rack)

Section titled “TinyRack (main rack)”

TinyRack-openGrid Adapter

Section titled “TinyRack-openGrid Adapter”
